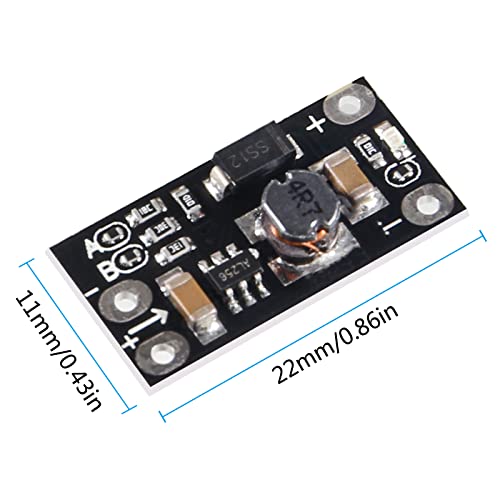

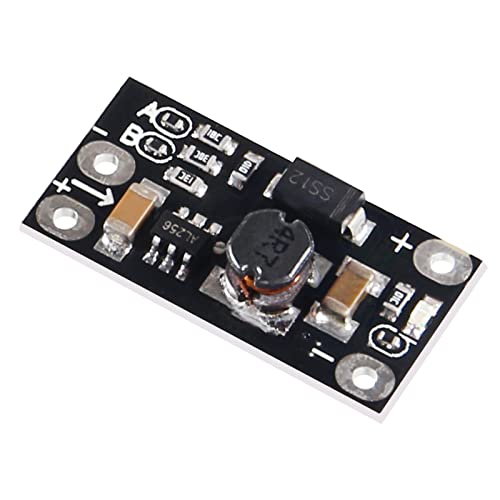

DIANN 10pcs 3.7V to 5V 8V 9V 12V Mini DC-DC Boost Module Step Up Board with LED Indicator for Electronic DIY

Specification:

• Input Voltage: DC 2.5V-VOUT
• Default Output Voltage: 12V
• Output Voltage: 5V/8V/9V/12V

Output Capacity:

• Input 3.7V Battery; Output 5V 1A, 8V 0.5A, 9V 0.45A, 12V 0.3A
• Input 5V Battery; Output 8V 0.7A, 9V 0.7A, 12V 0.5A

Package Contents:

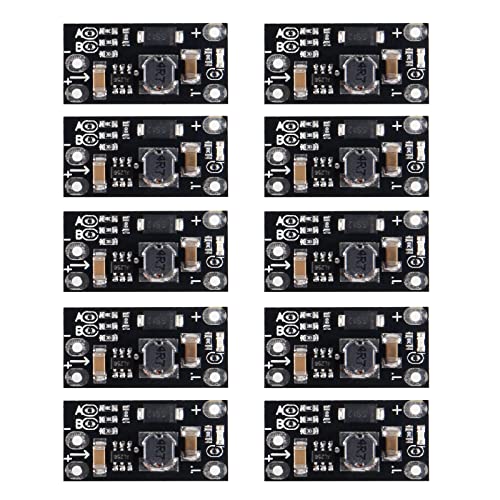

• 10 x Mini DC-DC Boost Converter Module

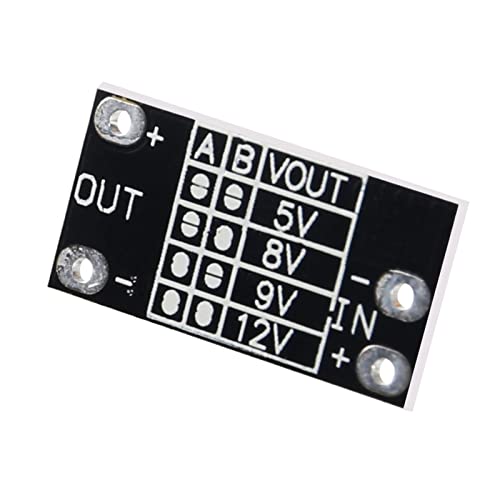

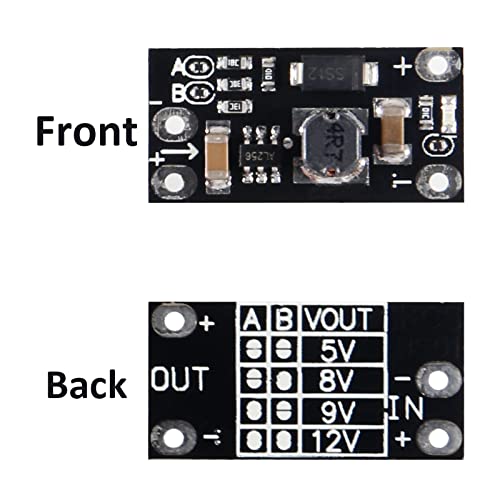

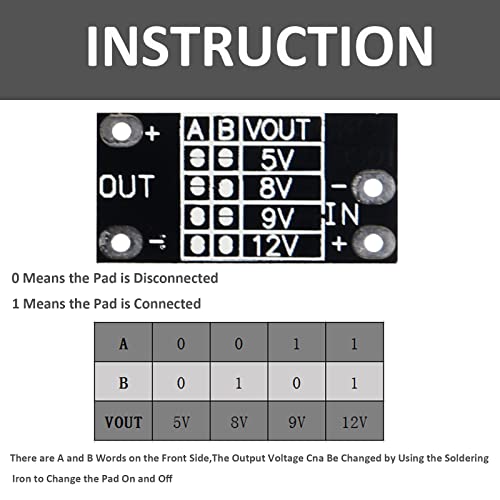

Output Voltage: 5V/8V/9V/12V; The Default is 12V
Input Voltage Range: 2.5V-VOUT;The Input Voltage Must Be Lower Than the Set Output Voltage
Output Capacity: When It Comes In and Out with 3.7V Lithium Battery, It Can Output 5V 1A, 8V 0.7A, 12V 0.5A, When It Outputs At 5V, It can output 8V 0.7A, 9V 0.7A,12V 0.5A
When the Default 12V Output, the LED Indicator Consumes About 6MA of Electricity; If the Indicator Light is Turned Off, the Input Current
The DC to DC Boost Converter Can Be Powered By Any Suitable DC Power Source: Battery, Solar Panel, Rectifier, DC Generator etc.
